64V20Ah
Nominal model: 64V20Ah
Total energy: 1280Wh
Cells: LFP/20S1P-20Ah

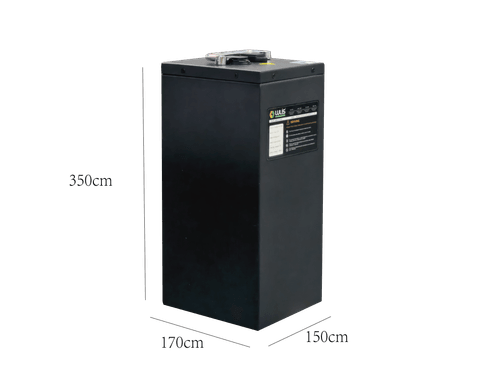

Size: 170*150*350mm/184*156*265mm
Weight: 10±0.5kg
Max continuous charge current: 10A
Max continuous dischargingcurrent: 30A
End-of-charge Voltage:73V
End-of-discharge Voltage: 50V
Communication: 485+Bluetooth
Interface: Zhente 2+4
Charging ambient temperature: 0℃～55℃
Discharge ambient temperature: -20℃～55℃
Cycle life: ≧1000times
Match the motor power: ≦1000W
Authentication: UN38.3/MSDS/UN3480T
Total energy: 1280Wh
Cells: LFP/20S1P-20Ah
Size: 170*150*350mm/184*156*265mm
Weight: 10±0.5kg
Max continuous charge current: 10A
Max continuous dischargingcurrent: 30A
End-of-charge Voltage:73V
End-of-discharge Voltage: 50V
Communication: 485+Bluetooth
Interface: Zhente 2+4
Charging ambient temperature: 0℃～55℃
Discharge ambient temperature: -20℃～55℃
Cycle life: ≧1000times
Match the motor power: ≦1000W
Authentication: UN38.3/MSDS/UN3480T
More Details

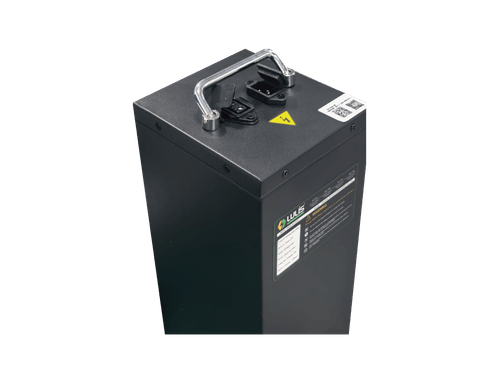

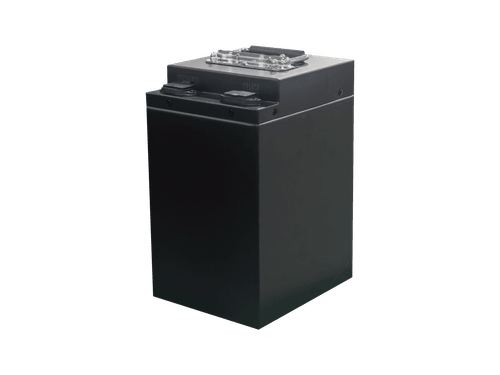

This smart 64V 20Ah lithium iron phosphate battery pack is equipped with our self-developed Battery Management System (BMS) technology, integrating multiple protection functions including overcharge, over-discharge, overvoltage, overcurrent, extreme temperature, and short circuit, providing continuous, safe, stable, and convenient power supply for various scenarios.
It supports Bluetooth communication, allowing real-time battery status monitoring via a mobile app, enabling quick fault detection and efficient troubleshooting.
With high energy density, compact size, and a high-strength metal casing, it is perfectly suited for electric motorcycles with power ≤1000W, offering stable and reliable performance.
